PCG Voxel Editor

This project is still in progress

Motivation & Goals

Inspired by Minecraft (of course!), I wanted to design a plug-in that can generate and save small voxel-based block lands based on user-defined parameters.

These block lands can then be randomly combined to form a large, procedurally generated voxel world.

Block Land Editor

Utility

The editor allows users to automatically generate a rectangular-shaped block land by specifying:

• Width and length
• Block type (e.g., grass, dirt, water, none)
• Erosion probability and erosion depth

Implementation

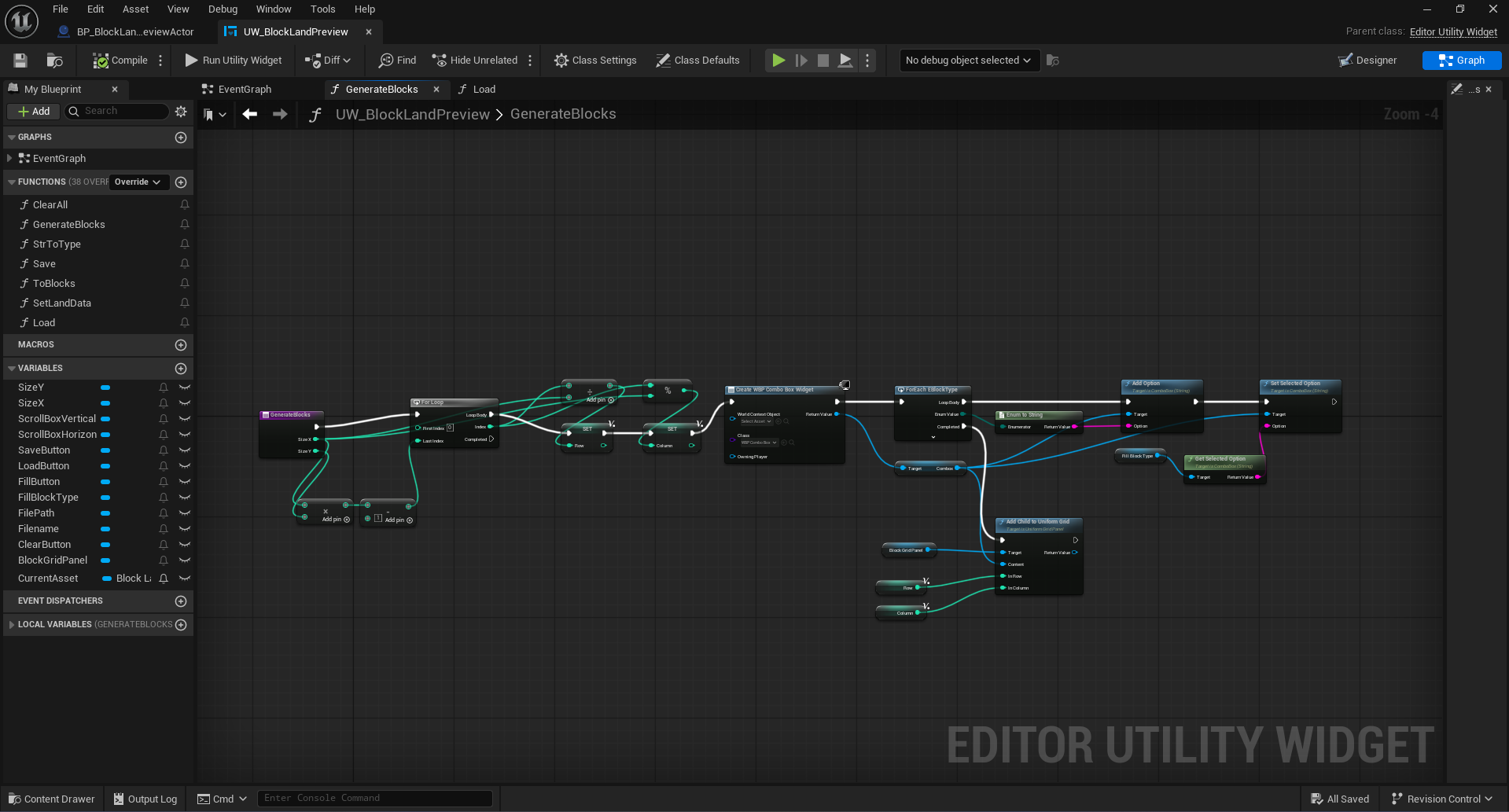

The editor is implemented entirely in Blueprints as an Editor Utility Widget.

Procedural Content Generation

There are several Procedural Content Generation (PCG) stages:

• Random block land shapes
• Randomized block textures
• Random arrangement of block lands (shape and size) into a full block world

Block Land Shapes

Each saved Block Land Data Asset can be modified at runtime to create varied terrain shapes.

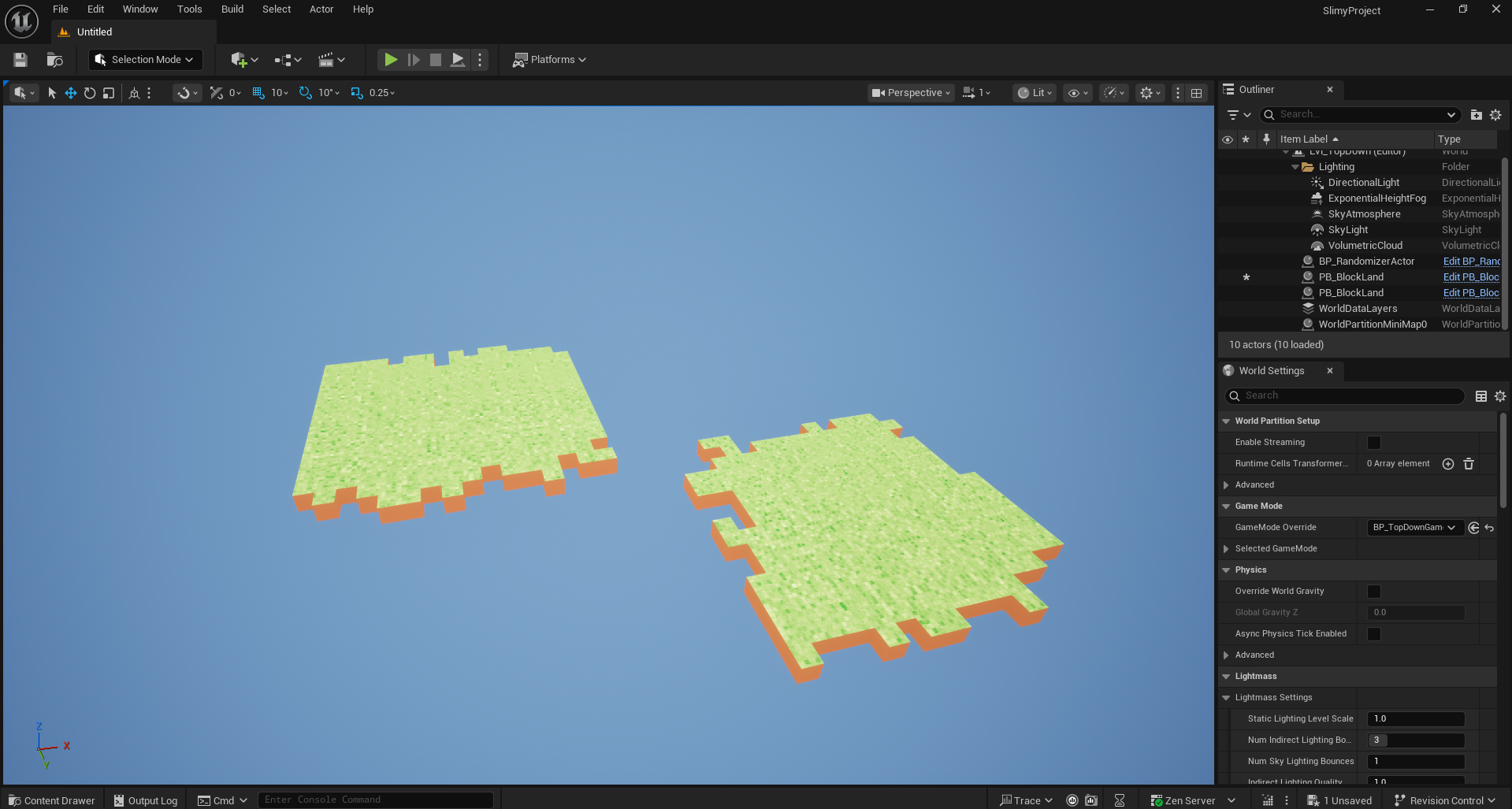

For example, two block lands generated from the same 16×16 grassland data asset can have different eroded edges, producing more natural variation.

.

The erosion algorithm randomly removes blocks along the edges based on erosion probability and erosion depth.

void ABlockLand::GenerateLandFromData()
{
	if (!LandData || !BlockRegistry)
	{
		return;
	}

	if (!bEroded)
	{
		// Get a clone of the land data
		// So that every instance of it will have different randomized shape
		LandDataClone = DuplicateObject<UBlockLandDataAsset>(LandData, this);
		LandDataClone->RandomlyErodeEdges();
		bEroded = true;
	}

	for (int32 y = 0; y < LandDataClone->SizeY; ++y)
	{
		for (int32 x = 0; x < LandDataClone->SizeX; ++x)
		{
			const FBlock block = LandDataClone->GetBlock(x, y);

			if (block.Type == EBlockType::None)
			{
				continue;
			}

			const UBlockMetaData* BlockData = BlockRegistry->GetData(block.Type);
			if (BlockData == nullptr)
			{
				continue;
			}

			EBlockMeshType MeshType = EBlockMeshType::Center;
			UStaticMesh* Mesh = BlockRegistry->GetMesh(MeshType);
			UMaterialInterface* Material = BlockData->GetMaterial();

			if (Material == nullptr || Mesh == nullptr)
			{
				continue;
			}

			FName Key = MakeMeshKey(Mesh, Material);
			UInstancedStaticMeshComponent* ISM = nullptr;

			if (MeshInstances.Contains(Key))
			{
				ISM = MeshInstances[Key];
			}
			else
			{
				ISM = NewObject<UInstancedStaticMeshComponent>(this);
				ISM->RegisterComponent();
				ISM->AttachToComponent(RootComponent, FAttachmentTransformRules::KeepRelativeTransform);
				ISM->SetStaticMesh(Mesh);
				ISM->SetMaterial(0, Material);
				ISM->SetMobility(EComponentMobility::Static);
				ISM->SetCastShadow(false);
				MeshInstances.Add(Key, ISM);
			}

			FVector Position = FVector(x * 100.0f, y * 100.0f, 100.0f);
			ISM->AddInstance(FTransform(Position));
		}
	}
}

Block Texture

Since the goal is procedural generation, I also applied PCG principles to texture creation.

Rather than providing many static textures, I designed a shader to generate seamless, pixel-styled procedural textures for each voxel block.

Noise Sampling

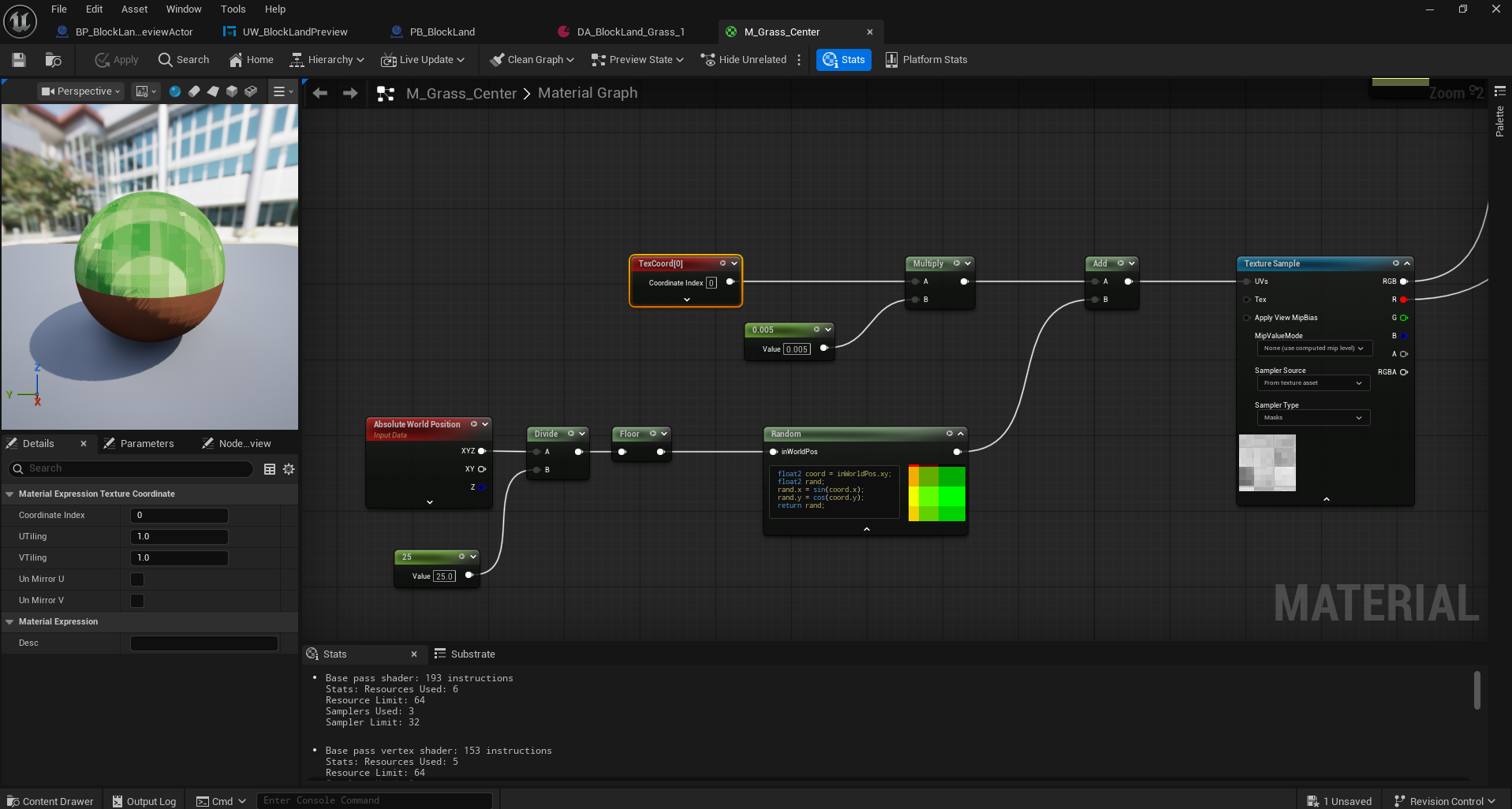

The block’s world position is used as input to a simple “randomizing” function (using sin and cos), and the result is added to the UV coordinates to sample from a noise texture.

Tinting:

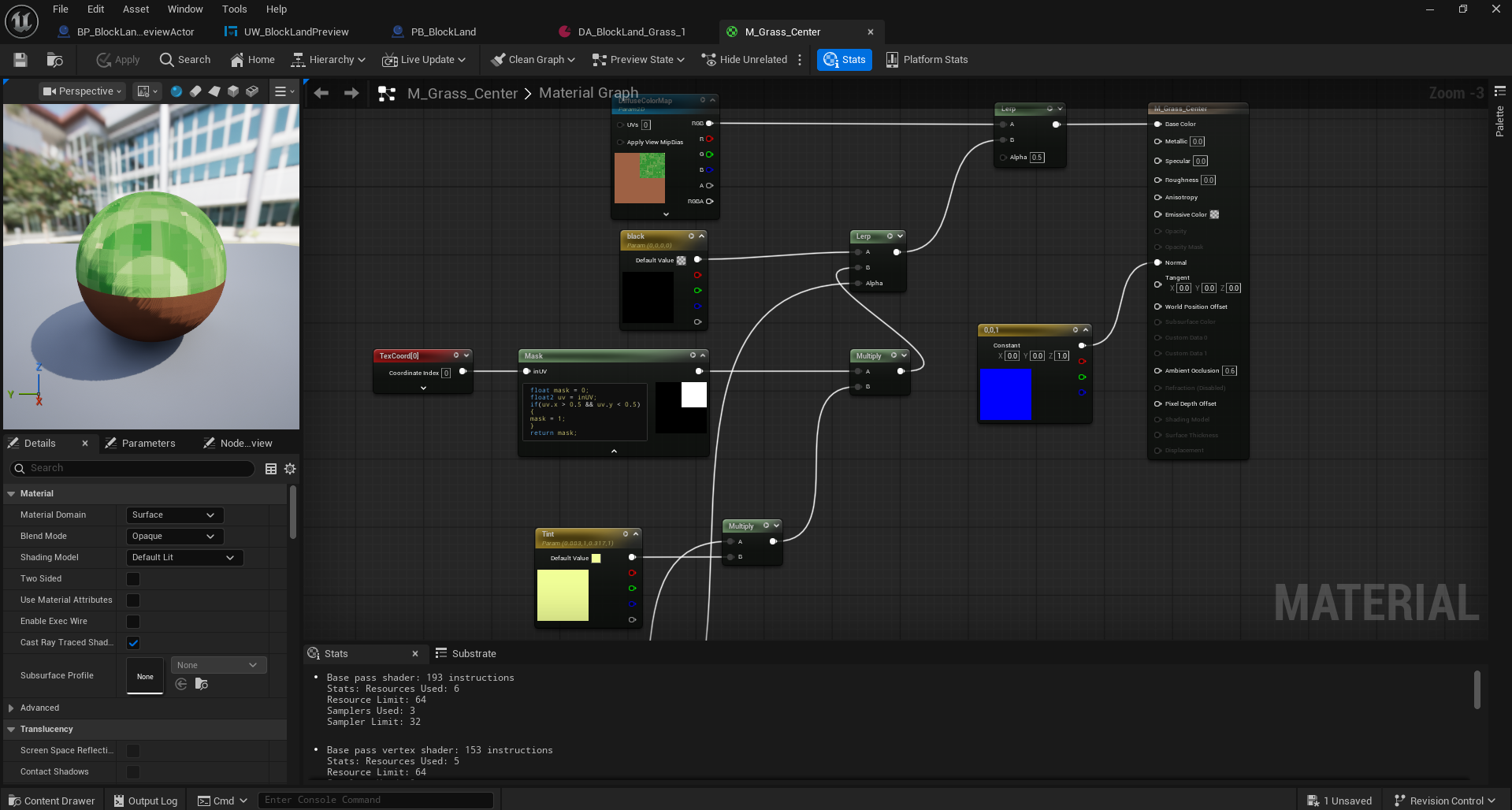

The noise texture is then applied as a tint to a specific region (e.g., the grass portion) of the input texture

This produces a cohesive yet varied pixel-art style texture across the block land, enhancing visual richness without repetitive tiling.

Block World (In Progress)

The next step is to implement the Block World system, which will combine multiple saved block lands into a large, fully procedural world.
